RX-31 Receiver Option
PDF Brochure |

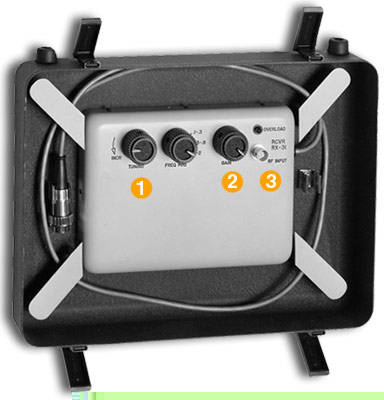

The RX-31 is designed specifically as an RF interface between an impedance
bridge and the SD-31 Coherent Detector. Conveniently mounted in the
protective cover of the SD-31, the RX-31 is a single conversion super
heterodyne receiver which derives its local oscillator signal and
power supply voltage from the SD-31. Receiver circuitry is packaged
in an aperature-free, drawn aluminum enclosre which provides excellent
RF shielding, IF selectivity is provided by active bandpass filters
which limit receiver bandwidth to100 Hz.
|
|
 |
RF FILTER |
| |
Manually tuned in 3 bands:
0.1-0.3 MHz
0.3-0.8 MHz
0.8-2.0 MHz
|
 |
GAIN CONTROL |
| |
Manual with overload indicator.
|
 |
BRIDGE INPUT |
| |
100 KhZ-1.9995 mHz,
automatically set by SD-31. |
|
|
| |
|
